High Precision, Vision Alignment Rework Station.

You are here: Home » Options

Options

● The upper and lower heating zone, temperature precision control within ±1°C. which can heat up at the same time from the top of he component to the bottom of the PCB; 8 segment temperature control independently. automatic mobile phone repair machine.

  • Heating System（Upper, Bottom heater and IR)

    • Top heater

    Bottom heater

    DC fan 60*60*25mm

    Heating plate switch

    K-type closed-loop thermo-couple controller

  • Control System

    • Programable logic controller (Include program)

    Touchscreen (Include program)

  • Motion System

    • Stepping driver

    Stepper motor (Automated Z-axis for removal and placement)

  • Precision Pick-up System

    • Vaccum pump

    Solenoid valve

    Picking-head device

  • BGA Alignment System

    • Split beam prism system for simultaneous PCB/ Component viewing

    Integral LED lighting system with illumination level control

    Full colour CCTV camera and 15' LCD monitor

    Precise X/ Y/ R aixs mounting system

  • Electrical

    • Brake switch

    24v power

    SSR (Soild state relay)

    All switches and buttons

    Stepper motor (Automated Z-axis for removal and placement)

  • Consumable Accessories

    • High-temperature silicone nozzle - 4mm diameter

    High-temperature silicone nozzle - 8mm diameter

    Top heater/ blower

    Botton heater/ blower

    IR preheating plate

  • Optional

    • Reball fixuture

    BGA Preheating table

    Calibration block for Alignment system

    Side visual inspection system for solder joint viewing

    Plenty Free parts

  • Heating System (Upper, Bottom heater and IR)

    • 1 pc. 50*50mm Bottom heating nozzle

    1 pc. 19*19mm Top heating nozzle

    1 pc. 25*25mm Top heating nozzle

    1 pc. 31*31mm Top heating nozzle

    1 pc. 38*38mm Top heating nozzle

    1 pc. 8mm vaccum Nozzle

    1 pc. 10mm vaccum Nozzle

    5 pc. Silicone nozzles(4mm)

    5 pc. Silicone nozzles(8mm)

    3 pc. K-type thermocouples with connectors

    1 pc. Top heater

    1 pc. Bottom IR heater

    1 set. Toolkit

    1-Year Parts Warranty

  • Electrical

    • Brake switch

    24v power

    SSR (Soild state relay)

    All switches and buttons

    Stepper motor (Automated Z-axis for removal and placement)

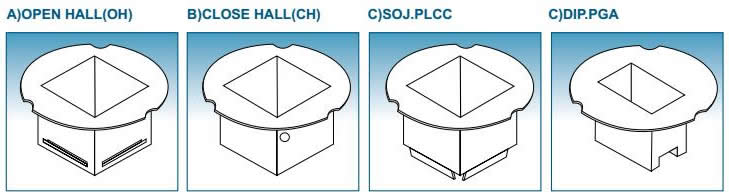

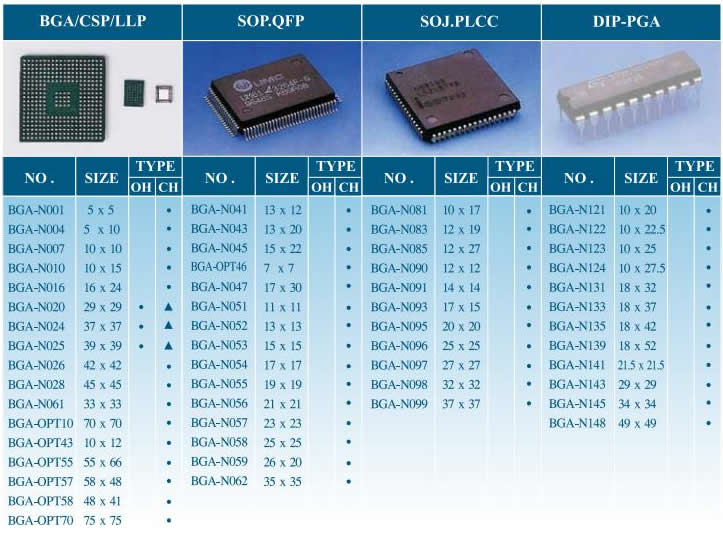

Specification of Air Nozzles

    • (common size, special size)unit mm

    • Remarks: Particular specifications for nozzles can be ordered. please infom us the BGA specification, nozzle size or send us your parts sample.
